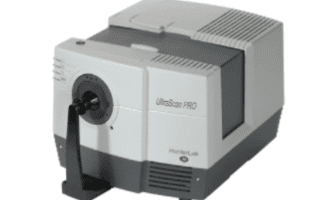

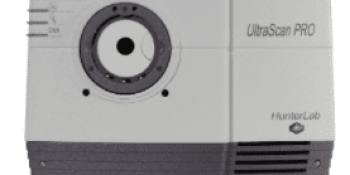

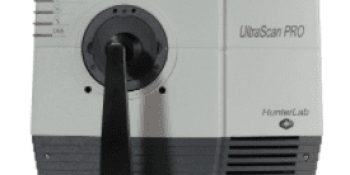

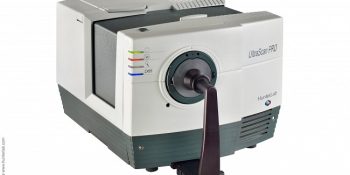

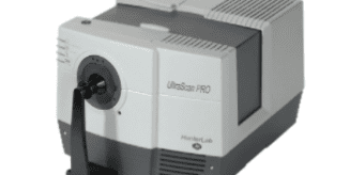

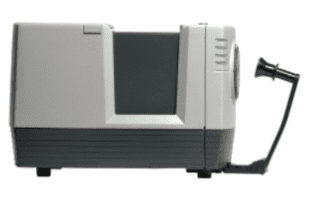

UltraScan PRO reflectance & transmittance Near-IR spectrophotometer

High-end colorimeter (diffuse/8°) Measuring range from ultraviolet to near infrared: 350 nm – 1050 nm

The D65 illumination source is calibrated in the ultraviolet region for the accurate measurement of whitening agents. UltraScan PRO has an extended wavelength range into the near infrared and near ultraviolet that permits the measurement of camouflage materials and UV blockers. The system uses diffuse/8° geometry with automated specular component inclusion/exclusion. It also features three sizes of sample measurement areas with automated lens change. The UltraScan PRO includes EasyMatch QC software and an electronic record keeping version that is 21 CFR 11 compliant is available.

Use UltraScan PRO for both research and quality control. From opaque solids to clear liquids to transparent films, UltraScan PRO precisely measures both reflected and transmitted colour, spectral reflectance, spectral transmittance and transmission haze. A host of measurement features and specialized sample-handling devices make UltraScan PRO the most versatile high-performance colour measurement spectrophotometer available.

Click here to have your samples tested and filmed for free.

Features of the UltraScan PRO


Measures reflectance & transmittance colour as well as spectral reflectance, spectral transmittance and transmission haze

Wavelength range

Wavelength range 350 nm - 1050 nm

Optical Resolution

5 nm optical resolution and reporting interval

Measurement Size

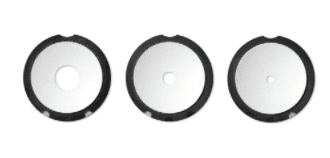

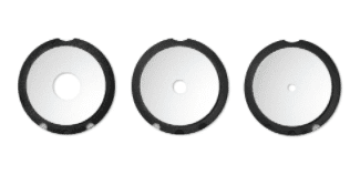

Three reflectance measurement apertures

Inter Instrument Agreement

Exceptional inter-instrument agreement

UV Calibration

Automated UV calibration and control

Transmission Measurement

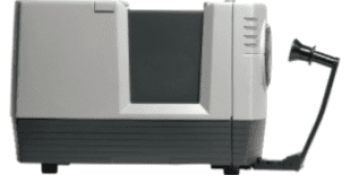

Large transmission compartment open on three sides

Software is Included

Includes EasyMatch QC software
